Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing

Brand Name : TOPPC

Model Number : TOPPC03

Certification : ROSH CE

Place of Origin : China

MOQ : 100 square meters

Price : 3.3USD-16.8USD per sqaure meters

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 1000000 meters per Month

Delivery Time : 15 days

Packaging Details : Plastic paper

Flexibility : Can be cold bent

Warranty : More than 10 years

Legth : 2.mm,3.05m,5.8m,11.8m

Easy To Cut : Yes

Application : Construction, Greenhouses, Signage, etc.

Materials : 100% Virgin

Temperature Resistance : -40°C to 120°C

High Temperature Resistance : Up to 120°C

Chemical Resistance : Resistant to most chemicals

Surface Treatment : UV Coating, Anti-Scratch, Anti-Fog

Light Transmission : Up to 90%

Easy To Install : Yes

Width : 600mm 1050mm

Color : Clear opal red Green Bronze

Contact Now

Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing for Canopies
Attribute Value
Flexibility Can be cold bent
Warranty More than 10 years
Length 2.mm,3.05m,5.8m,11.8m
Easy To Cut Yes
Application Construction, Greenhouses, Signage, etc.
Materials 100% Virgin
Temperature Resistance -40°C to 120°C
High Temperature Resistance Up to 120°C
Chemical Resistance Resistant to most chemicals
Surface Treatment UV Coating, Anti-Scratch, Anti-Fog
Light Transmission Up to 90%
Easy To Install Yes
Width 600mm 1050mm
Color Clear opal red Green Bronze

Honeycomb U-lock Polycarbonate Sheet is a high-strength, energy-efficient roofing and cladding panel designed with an X-shaped internal structure and a U-locking edge system. It offers enhanced mechanical stability, thermal insulation, and fast, seamless installation, making it ideal for both commercial and residential use.

Key Features of X-profile U-lock Polycarbonate Sheet
  • Honeycom Internal Structure
    • Crossed ribs form an X-pattern inside the sheet, creating multiple air chambers.
    • Significantly improves compression resistance, wind load capacity, and thermal insulation.

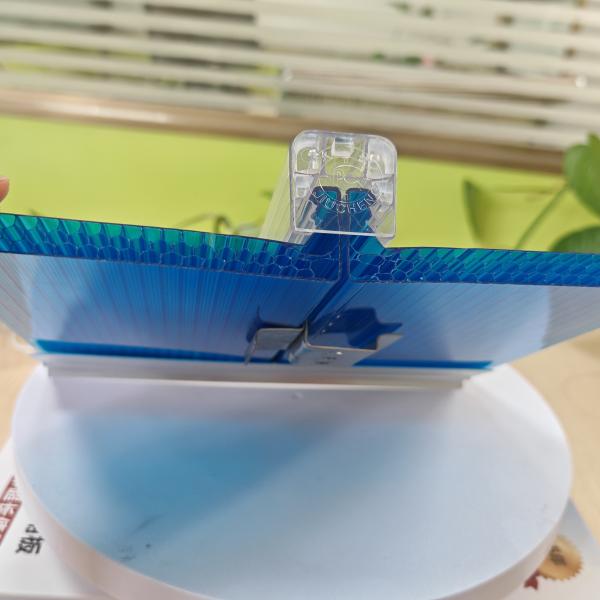

  • Integrated U-lock Edge Design
    • U-lock edges allow panels to snap together tightly without additional connectors.
    • Ensures a leak-proof, clean-lined, and secure installation.
  • UV Coating for Durability
    • One or both sides UV-protected to prevent yellowing, cracking, and aging from sunlight.
  • Lightweight & Impact Resistant
    • Weighs less than glass or metal roofing, yet provides up to 200 times more impact resistance than glass.
  • Even Light Distribution
    • X-profile disperses light effectively to reduce glare and hotspots, ideal for covered walkways, skylights, and greenhouses.
Typical Specifications
Item Specification
Thickness 16mm / 18mm / 20mm
Effective Width 600mm
Total Width 630mm
Length Custom (standard: 6m / 11.8m)
Internal Structure Honeycomb
Colors Clear, Blue, Bronze, Opal, Green
UV Protection One or both sides
Light Transmission (Clear) 50-65%
Thermal Conductivity (K) ≤ 1.7 W/m²*K
Fire Rating B1 (Flame Retardant)
Advantages
  • Stronger than standard multi-wall sheets due to X-shaped support
  • Efficient heat insulation and sound reduction
  • Quick, tool-free assembly using U-lock design
  • Excellent resistance to weather, hail, and impact
  • Visually clean with concealed joints
Common Applications
  • Skylights and daylight roofing
  • Greenhouses and garden buildings
  • Carports and canopies
  • Covered walkways and patio enclosures
  • Commercial building facades
Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing Honeycomb U-lock Polycarbonate Sheet - Lightweight Impact-Resistant Roofing
